Forming machine
Model | CXJ-100 | CXJ-150 | CXJ-400 | CXJ-600 |
Belt width | 130mm | 150mm | 400mm | 600mm |
Max. burger diameter | 100mm | 130mm | 135mm | 150mm |
Max. burger thickness | 15mm | 18mm | 25mm | 40mm |
Speed per minute | 35 circles | 10-35 circles | 15-55 circles | 30-70 circles |
Dimensions | 86*60*140cm | 107*34*96cm | 282*83*213cm | 317*117*243cm |
Name | Specification |

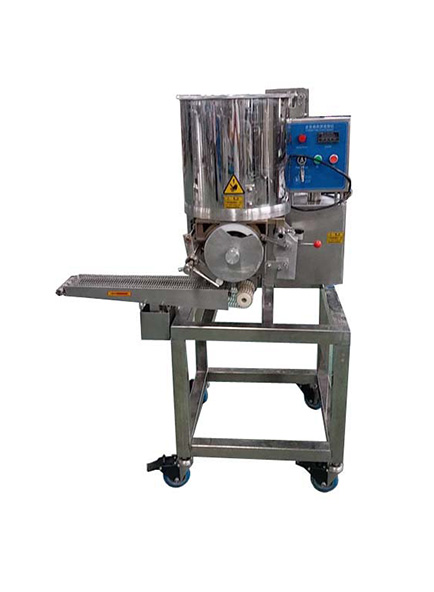

Forming machine CXJ-100
| 1.Material: Stainless Steel 304 2.Capacity: 35 circles/min 3.Bin volume: 30L 4.Thickness: 6-15mm adjustable 5.Power: 0.55KW 6.Weight: 100KG 7.Size: 860×600×1400mm 8.Can change mold |

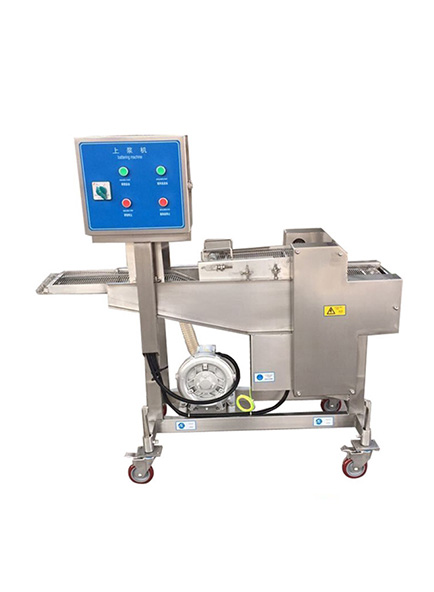

Battering machine NJJ-200
| 1.Width of belt: 200mm 2.Power: 0.62KW 3.Input height: 680-720mm 4.Output height:670-770mm 5.Weight: 100KG 6.Size: 1400×550×1250mm 7.Material 304 stainless steel |

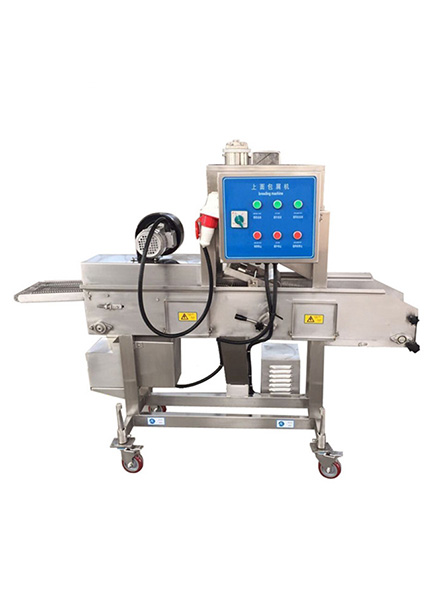

Breading machine SXJ-200 | 1.Width of belt: 200mm 2.Power: 0.86KW 3.Input height: 680-720mm 4.Output height:670-770mm 5.Weight: 130KG 6.Size: 1720×650×1400mm 7.Material 304 stainless steel |
Continuous frying machine ACF-2500
| 1.Heating method: electricity 2.Power: 32.2kw 3.Power source: 380V/50HZ 3phase 4.Width of belt: 400mm 5.Conveyor belt: stainless steel belt 6.Size: 3000x1000x1300mm 7.Weight: 500kg 8.Material 304 stainless steel |
